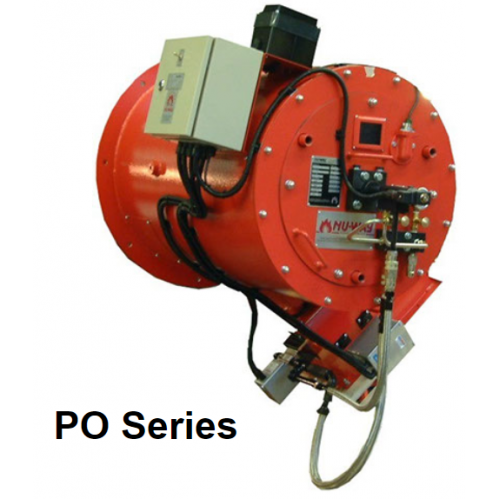

PO SERIES OIL BURNER

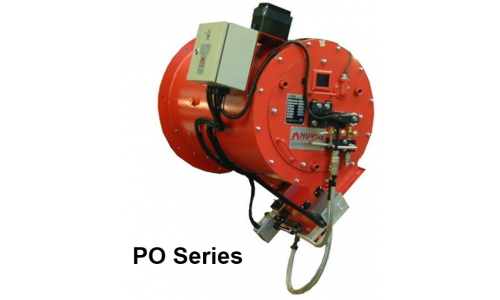

PO Series Oil Burner
• Available configured for distillate or residual oils, other liquid fuels on request
• Applications include steam and high pressure hot water boilers, as well as more
diverse processes such as rotary dryers
• Separate floor-mounted combustion air fan unit or monoblock design option
• Pressure atomisation (no compressed air or steam required)
• Fully modulating operation as standard on both fuels
• Microprocessor based Autoflame sequence control (Siemens LMV5 or ETC options)
with servo motor fuel/air ratio management for up to 4:1 turndown (oil)
• Factory-set spillback pressures for straightforward commissioning
• Skid mounted oil pump and heater sets for easy installation
• All kW ratings are nett CV
Optional Extras:
- Exhaust gas analysis for passive monitoring of emissions
- Oxygen trim for improved emissions control
- Variable speed drive combustion fan for improved electrical efficiency
- Air inlet silencer (<85 dBA)
- Non Autoflame mechanical linkage
- Separate or integrated water level controls for steam boiler
- Data Transfer Interface (DTI)
- Low NOx head (<80mg/kWh)*
Optional air handling configurations available to suit appliance
